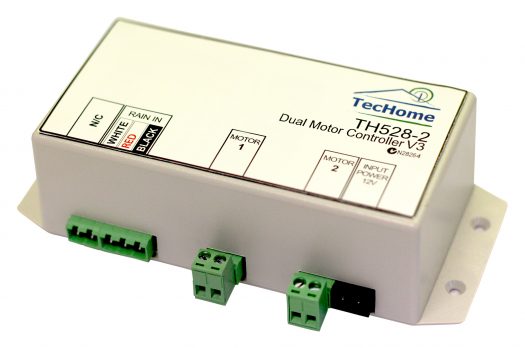

TH528 – 2 Channel Motor Controller
Designed and manufactured in Australia, the TecHome TH528 Control Kit is a remote controlled 2 bank motor controller. Perfect for singular motor control, the TH528 is easily integrated with TecHome’s range of linear actuators.
Features:
- Two motor control inputs
- Low voltage operation
- Rain sensor input standard
- Factory pre-programmed
Benefits:
- Users are able to control up to 2 motors from the one controller
- Energy efficient
General Features:
| TH528 motor controller | |
| Voltage | 12V or 24CV DC |
| Dimensions | 130mm x 68xx 44mm |
| Maximum Motor Control | 2 |
| Protection Class | IP50 |
| Operational Temperature Range | 0°-50°C |
| Tick Approval | UL/FCC/CE/C |
|
|
|
| TH379-3- 1 Channel Remote | |
| Dimensions | 124m x 48mm |
| Channel Number | 1 |
| Battery | 12V |
| Protection Class | IP50 |
| Tick Approval | UL/FCC/CE/C |
|
|
|
